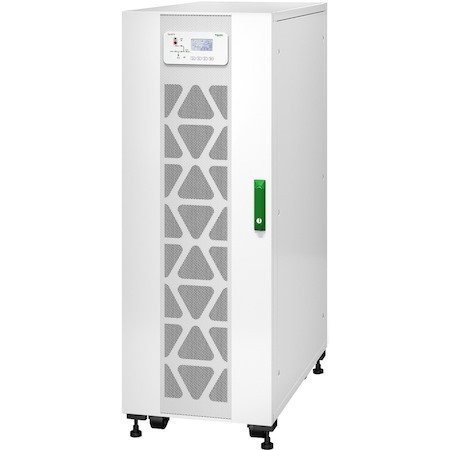

APC by Schneider Electric Easy UPS 3S Double Conversion Online UPS - 40 kVA/40 kW - Three Phase

  • Part: 1062449
  • Model: E3SUPS40KHB
$12,941.00

Availability

Out of Stock

Presentation

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 40 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.

  • General Information
    • Manufacturer
    • Schneider Electric SA
    • Manufacturer Website Address
    • http://www.schneider-electric.com.au
    • Brand Name
    • APC by Schneider Electric
    • Product Line
    • Easy UPS 3S
    • Packaged Quantity
    • 1 Pack
    • Product Type
    • Double Conversion Online UPS
  • Warranty
    • Limited Warranty
    • 1 Year
    • Additional Warranty Information
    • 1 year on-site repair or replace with factory authorized Start-Up

  • Technical Information
    • Phase
    • Three Phase
    • Application/Usage
    • Business
    • Electrical Room
    • Data Center
  • Power Description
    • Load Capacity (VA)
    • 40 kVA
    • Load Capacity (Watt)
    • 40 kW
    • Input Voltage
    • 400 V AC
    • 380 V AC
    • 415 V AC
    • Input Voltage Range
    • 304 V AC - 477 V AC
    • Output Voltage
    • 400 V AC
    • 380 V AC
    • 415 V AC
    • Input Frequency
    • 65 Hz
    • Output Frequency
    • 60 Hz
    • Input Power Factor
    • 0.99
  • Interfaces/Ports
    • USB (HID Compliant) Port
    • Yes
  • Battery Information
    • Battery Chemistry
    • Sealed Lead Acid (VRLA)
  • Environmental Conditions
    • Maximum Operating Temperature
    • 40°C
    • Maximum Operating Elevation
    • 1.02 km
    • Maximum Storage Elevation
    • 15.24 km
    • Operating Humidity
    • 0% - 95%
    • Storage Relative Humidity
    • 0% - 95%
    • Sound Emission (A-Weighted)
    • 63 dB(A)
    • Thermal Dissipation
    • 1880 BTU/h
  • Physical Characteristics
    • Product Color
    • White
    • Form Factor
    • Tower
    • Height
    • 1400 mm
    • Width
    • 500 mm
    • Depth
    • 996 mm
    • Weight (Approximate)
    • 158 kg
  • Miscellaneous
    • Environmentally Friendly
    • Yes
    • Environmental Compliance
    • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
    • Restriction of Hazardous Substances (RoHS)
    • China Restriction of Hazardous Substances (China RoHS)
    • Waste Electrical and Electronic Equipment Directive (WEEE)
