- General Information
- Manufacturer
- CyberPower Systems, Inc
- Manufacturer Website Address
- https://www.cyberpower.com/au
- Brand Name
- CyberPower
- Product Series
- HSTP3T
- Product Type
- Double Conversion Online UPS

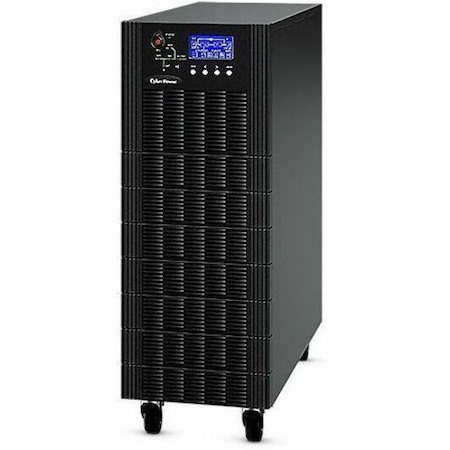

The 3-Phase UPS with parallel expansion capability to achieve N+X power redundancy for enterprise applications
Designed for server room and data center applications, the HSTP3T (3-Phase) Series adopts double-conversion topology to provide seamless Pure Sine Wave output. The products also adopt ECO Mode to save on energy costs, Smart Battery Management (SBM) to extend battery lifespan, and multifunction LCD readout to display precise information. The power management software allows users to easily control and monitor the UPS system
SERIES FEATURES
- Three-phase Design
- Online (Double Conversion) UPS Topology
- Online ECO Mode
- UPS Parallel Expansion
- Dual Inputs
- Generator Compatible
- Pure Sine Wave Output
- Overload Protection
- Maintenance Bypass Switch
- LCD Status Display
- Emergency Power Off (EPO) Port
- PowerPanel® Management Software
- Technical Information
- Overload Protection
- Yes
- Phase
- Three Phase
- Application/Usage
- Server Room
- Data Center
- Generator
- Efficiency
- 95%
- Power Description
- Load Capacity (VA)
- 15 kVA
- Load Capacity (Watt)
- 13.50 kW
- Input Voltage
- 230 V AC
- 380 V AC
- 400 V AC
- 415 V AC
- 120 V AC
- Input Voltage Range
- 132 V AC - 276 V AC
- 228 V AC - 478 V AC
- Output Voltage
- 220 V AC
- 230 V AC
- 240 V AC
- 380 V AC
- 400 V AC
- 415 V AC
- Input Frequency
- 50 Hz
- 60 Hz
- 40 Hz
- 70 Hz
- Output Frequency
- 50 Hz
- 60 Hz
- Waveform Type
- Pure Sine Wave
- Input Power Factor
- 0.99
- Output Power Factor
- 0.9
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- Relay (Dry Contact) Card
- RS-232
- SNMP/HTTP Remote Monitoring
- Dry Contact
- Controls/Indicators
- Status Indicators
LCD Display:
- Operation Type
- Power Status
- Battery Status
- Load Status
- Fault & Warning
- Other Information
- Event & Log
- Interfaces/Ports
- Serial Port
- Yes
- EPO Port
- Yes
- Battery Information
- DC System Voltage
- 240 V DC
- Battery Characteristics
- VRLA/AGM/Gel
- Battery Chemistry
- Lead Acid
- Battery Size
- 12V
- Battery Capacity
- 9000 mAh
- Backup/Run Time (Full Load)
- 5 Minute
- Backup/Run Time (Half Load)
- 18 Minute
- Environmental Conditions
- Maximum Operating Temperature
- 40°C
- Maximum Operating Elevation
- 1 km
- Operating Humidity
- 0% - 95%
- Storage Relative Humidity
- 0% - 95%
- Sound Emission
- 58 dB
- Physical Characteristics
- Form Factor
- Tower
- Height
- 715 mm
- Width
- 250 mm
- Depth
- 840 mm
- Weight (Approximate)
- 52.10 kg
- Miscellaneous
- Certifications & Standards
- IP20
- CE
- IEC62040-1
- IEC62040-2
